Epoxy Resin Technical Knowledge & Selection Guide

Navigating the world of epoxy resins requires a clear understanding of key technical indicators, molecular weights, and specific grade compatibility. Below is your professional guide to choosing and sourcing the right epoxy resin for your formulation.

1. Key Technical Indicators of Epoxy Resin

When evaluating an epoxy resin datasheet (TDS), pay close attention to these vital parameters:

• Epoxy Equivalent Value (EEV / EEW): Represents the grams of resin containing one gram-equivalent of epoxide group (g/eq). It dictates cross-linking density, chemical resistance, and hardness. Lower EEW means higher cross-linking density.
• Viscosità: Measured in mPa·s at 25°C (unless specified otherwise). Crucial for determining flowability, processing method (solvent-free vs. solvent-borne), and filler loading capacity.
• Hydrolyzable Chlorine Content: A critical indicator for electronic and high-end coating applications. Lower chlorine content ensures better electrical insulation and superior long-term corrosion resistance.
• Color (Gardner): Reflects the purity and clarity of the resin, important for clear topcoats and high-aesthetic flooring systems.

2. How to Choose the Right Epoxy Resin

Selecting the correct resin depends primarily on your application method and curing system:

• For Solvent-Free Flooring & Self-Leveling Systems: Choose standard liquid epoxy resins (like E-51 / 128 / NPEL-128) due to their moderate viscosity, excellent wetting properties, and balanced mechanical strength.
• For High-Viscosity Mortars & Primers: Consider higher molecular weight liquid resins or modified versions (like E-44 / 6101) which offer enhanced thixotropy and crack-bridging capabilities.
• For Powder Coatings & Heat-Cured Anti-Corrosion Primers: Opt for solid epoxy resins (like E-12 / 604) which provide superior storage stability and film toughness at elevated temperatures.

3. Commonly Used Epoxy Resin Grades & Manufacturer Cross-Reference

To help you match or substitute raw materials seamlessly across global supply chains, reference our standard cross-brand compatibility list below:

Resin Grade	Key Application	Application Description	Epoxy Equivalent (g/eq)Epoxy Value (eq/100g)	Viscosità	Other Properties (Hydrolyzable Chloride, Color)	Baling Petrochemical	Sanmu	Kukdo	Nan Ya
Low-viscosity E51	Solvent-free floor coatings, high-build anti-corrosion coatings	Self-leveling floor topcoat, solvent-free high-build anti-corrosion; better flowability, less reactive diluent required	180~190/0.53~0.56	8000~11000 mPa·s @25℃	Hydrolyzable Cl ≤0.1%; Gardner color ≤1	CYD‑127	SM815L	YD‑127	NPEL‑127
E51 (618)	General floor coatings & steel anti-corrosion coatings	Floor primer/topcoat, steel epoxy primer, conventional solvent-borne anti-corrosion; mainstream liquid epoxy for coatings	184~194/0.51~0.54	11000~15000 mPa·s @25℃	Hydrolyzable Cl ≤0.1%; Gardner color ≤1. Kukdo YD‑128 low-Cl grade ≤0.05%	CYD‑128	SM828	YD‑128	NPEL‑128

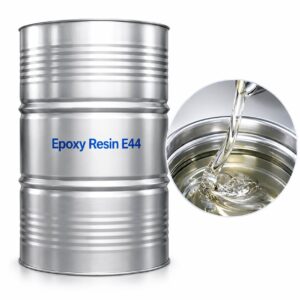

E44 (6101)	Epoxy mortar floor, general anti-corrosion primer	Higher viscosity; used for epoxy mortar floor, high-build primer, concrete anti-corrosion repair; rarely used alone in self-leveling systems	210~240/0.41~0.47	20000~40000 mPa·s @25℃	Hydrolyzable Cl ≤0.3%; Gardner color ≤2	CYD‑144	SM‑6101	No mainstream grade	No mainstream grade
E42 (634)	High-build heavy-duty anti-corrosion, glass flake coatings	Higher epoxy equivalent; suitable for high-solids high-build coatings, glass flake coatings, tank internal anti-corrosion, better chemical resistance than E51	222~238/0.42~0.45	30000~50000 mPa·s @25℃	Hydrolyzable Cl ≤0.2%; Gardner color ≤1	CYD‑134	SM834	YD‑134	NPEL‑134
E20 (601, solid)	Solvent-borne epoxy mica intermediate coat, marine & industrial heavy-duty anti-corrosion intermediate coat	Solid resin, needs dilution with xylene/butanol; epoxy mica intermediate coat, marine anti-corrosion paint, high-solids solvent-borne anti-corrosion primer	840~900/0.11~0.12	3000~6000 mPa·s @70℃ (melt viscosity)	Hydrolyzable Cl ≤0.2%; Gardner color ≤1	CYD‑011	601	KD‑011	NPES‑901
